Back to all productsRMD-00

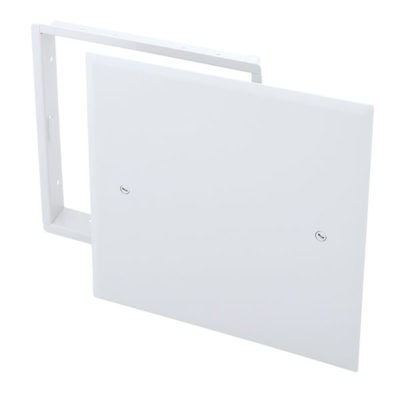

Flush Universal Removable Access Door with Hidden Flange

screwdriver operated cam latch

The removable access panel, with bevelled edges, closes over the flange. The two screwdriver cam latches keep the panel close. The door is ideal for confined spaces where access is limited or where a hinged door cannot be used due to an obstruction.

  • Installation Walls and ceilings
  • Material Cold rolled steel
  • Locking mechanism Screwdriver operated cam latch
  • Hinge No hinge
  • Flange Hidden Flange
  • Size Other sizes available upon request

View options for this product →

Quantity

Technical specifications and dimensions

  • Material

    16-gauge cold rolled steel

  • Hinge

    No hinge type

  • Locking mechanism

    Screwdriver operated cam latch in cold rolled steel

  • Flange

    7/8" concealed flange

  • Frame

    1½" in depth, made of cold rolled steel

  • Rough opening

    Door sizes + ¼ " or + 6mm

  • Finish

    High quality white powder coat primer

  • Packaging

    Individually wrapped, 1 door per box

Contact us
Dimensions (Inches)Dimensions (Millimeters)Weight (LBS)Weight (KG)Number of locks
* 8 X 8203 X 2033.51.62
* 12 X 12305 X 3055.92.72
* 16 X 16406 X 4068.73.92
* 24 X 24609 X 60916.77.64
* All dimensions are written in the following order: Width X Height

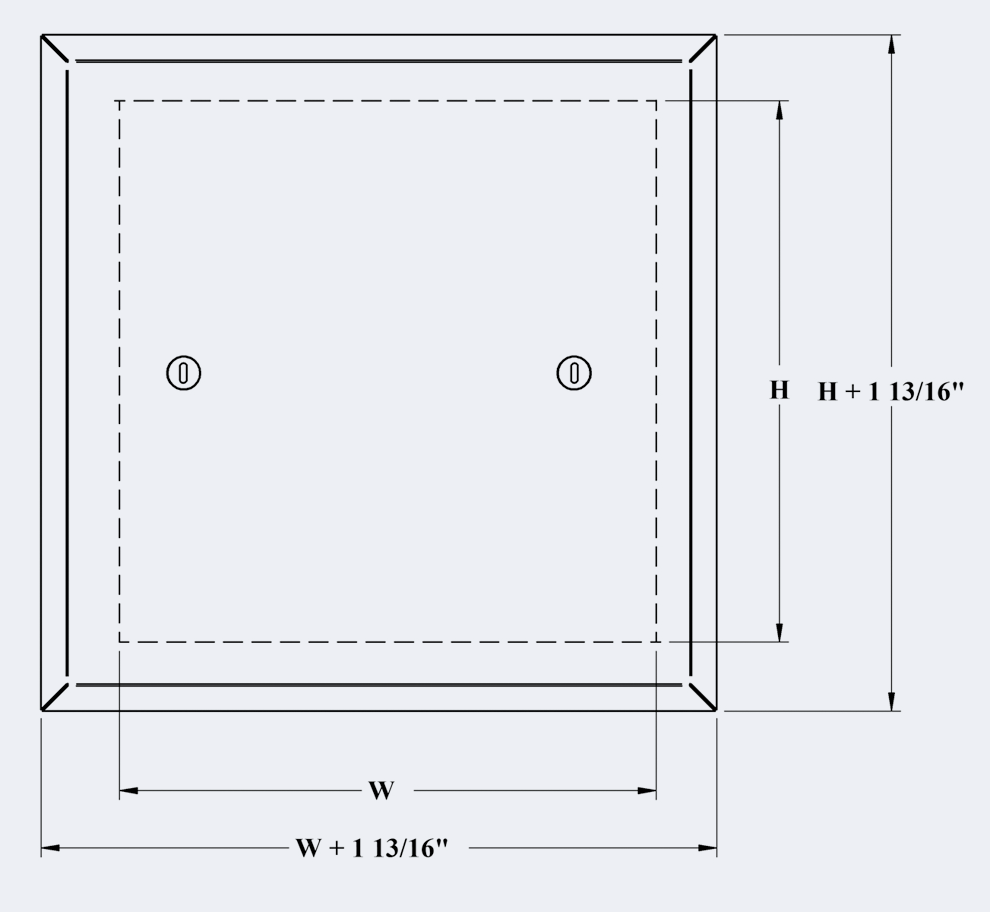

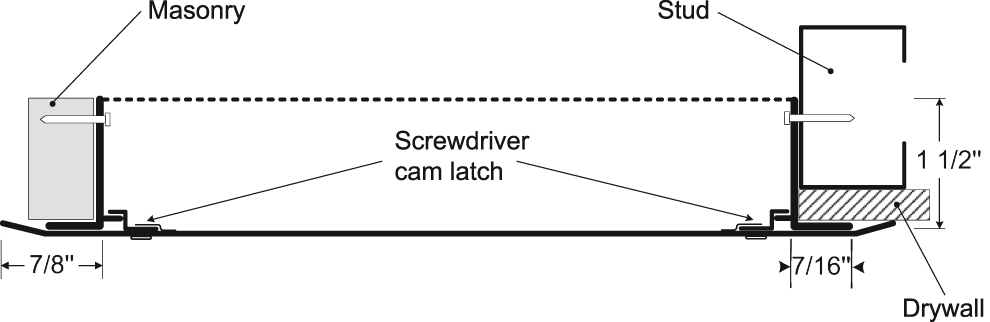

Technical drawings

Availability

We maintain an inventory of over 42 popular sizes of access panels in our warehouses across North America, ready for next-day delivery or pickup. Refer to the size chart labels to check availability. If not in stock, we can manufacture it in 5 business days.

  • Stocked in Montreal
  • Stocked in Montreal & USA
  • Not in stock. 5 days lead-time.
Contact us
Dimensions Product SKU
8 X 8 RMD-08X08-00
12 X 12 RMD-12X12-00
16 X 16 RMD-16X16-00
24 X 24 RMD-24X24-00
